SPECIFICATIONS

Overview
Height of Cabinet	19.63" (50 cm)
Height to Hinge Cap	20.0" (51 cm)
Width	18.5" (47 cm)
Depth	17.63" (45 cm)
Depth with door at 90�	34.5" (88 cm)
Capacity	1.4 cu.ft. (40 L)
Defrost Type	Manual
Door	White
Cabinet	White
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Amps	0.8
Voltage/Frequency	115 V AC/60 Hz
Weight	35.0 lbs. (16 kg)
Shipping Weight	37.0 lbs. (17 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
Freezer
Door Swing	RHD
Reversible	Factory Reversible
Interior Height	14.38" (37 cm)
Interior Width	13.5" (34 cm)
Interior Depth	13.25" (34 cm)
Shelf Type	Wire
Shelf Qty	1
Thermostat Type	Dial
Refrigerant Type	R134a
Refrigerant Amount	1.5 oz.
Level Legs	2
Compressor Step Height	8.5" (22 cm)
Compressor Step Width	13.5" (34 cm)
Compressor Step Depth	6.0" (15 cm)

AVAILABLE UPGRADES

Handle

CP Full-Length Copper Pipe Handle

Factory-installed full-length handle made from pure copper for antimicrobial protection

TBC Copper Towel Bar Handle

Factory-installed handle made from pure copper for antimicrobial protection

Exterior

DL1 - Factory installed data logger USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac	FA Front - Fan assist Fan assisted cooling for enclosed use in cubbies or cabinets, front breathing
FA Rear - Fan assist Fan assisted cooling for enclosed use in cubbies or cabinets, rear breathing	Latch for door Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
LHD - Left hand door swing Door reversal to left hand swing	ODA - Open door alarm Add an open door alarm to audibly buzz when the door is left ajar.
SCD - Self-closing door Protect interior contents and reduce energy waste with the Self Closing Door Option	Extra key Extra keys available for purchase
DT - Digital thermostat Install a digital thermostat with external readout for precise temperature management	DL2B - Factory installed NIST calibrated digital data logger (DDL) USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout

Lock

AC Keypad

Keypad door lock powered by appliance power cord for keyless security

KEYPAD

Battery-powered keypad door lock installed for keyless security

This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or

California residents:

WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to .
Note: Nickel is a component of stainless steel.

FEATURES

Compact dimensions
Ideal size for use on top of counters

-20� capable
Low temperature capability ideal for certain sensitive items

Factory installed lock
Keyed lock for secure interior

High temperature alarm
Warns of temperature fluctuations and includes an external temperature readout on the door

NIST calibrated temperature display
Alarm includes NIST calibrated display of the current interior and high/low temperature

Hospital grade cord with 'green dot' plug
Secure three-pronged cord for added unit safety

Manual defrost
Static cooling system for reduced temperature fluctuations

Removable shelf
Includes one wire shelf for easier storage

One-piece interior liner
Seamless interior for easier cleanup

Flat door liner
Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials

Adjustable thermostat
Dial thermostat located inside for easy temperature management

Access port
Unit comes with a factory installed probe hole for users to connect their own monitoring equipment

100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals

DESCRIPTION

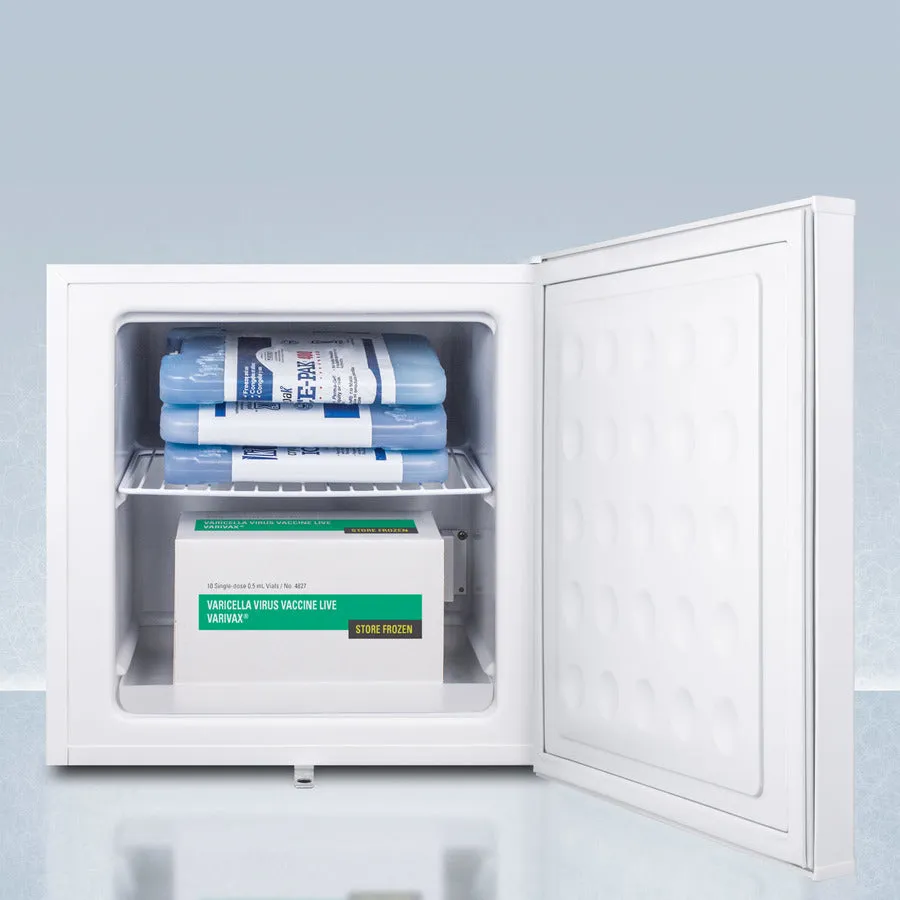

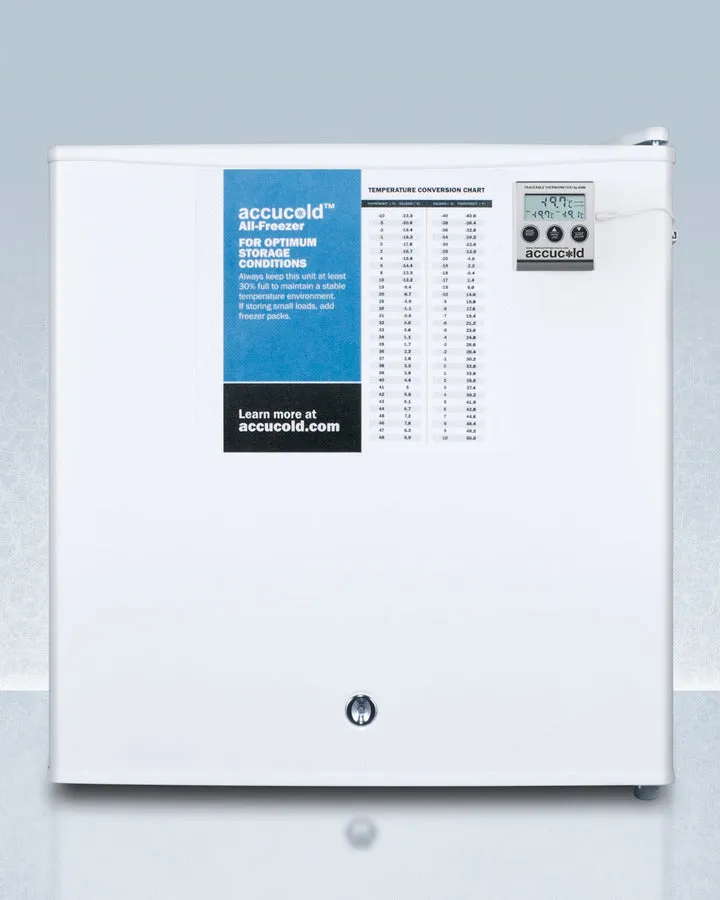

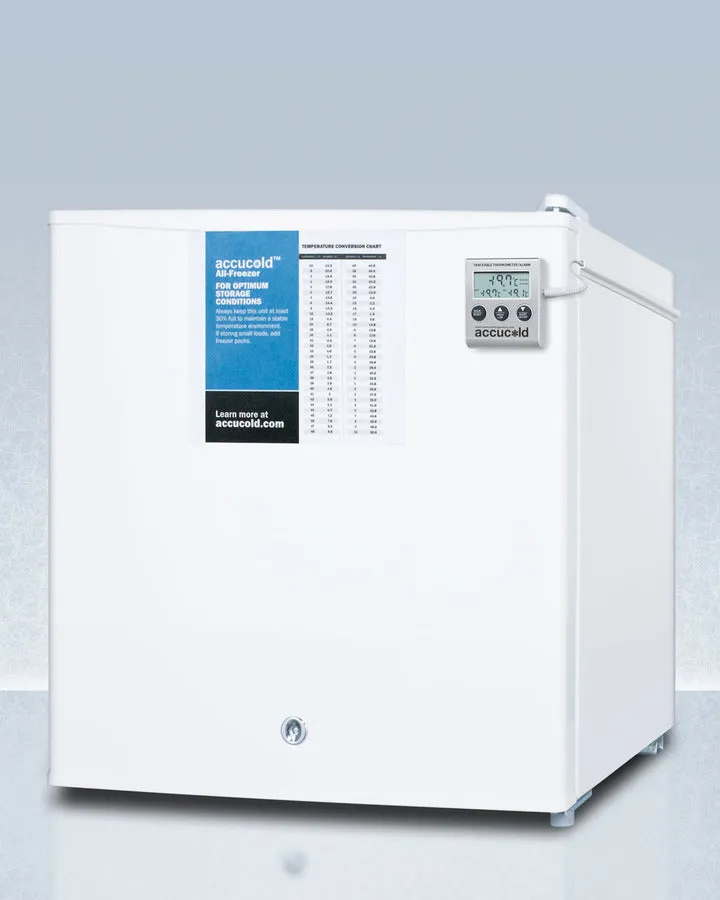

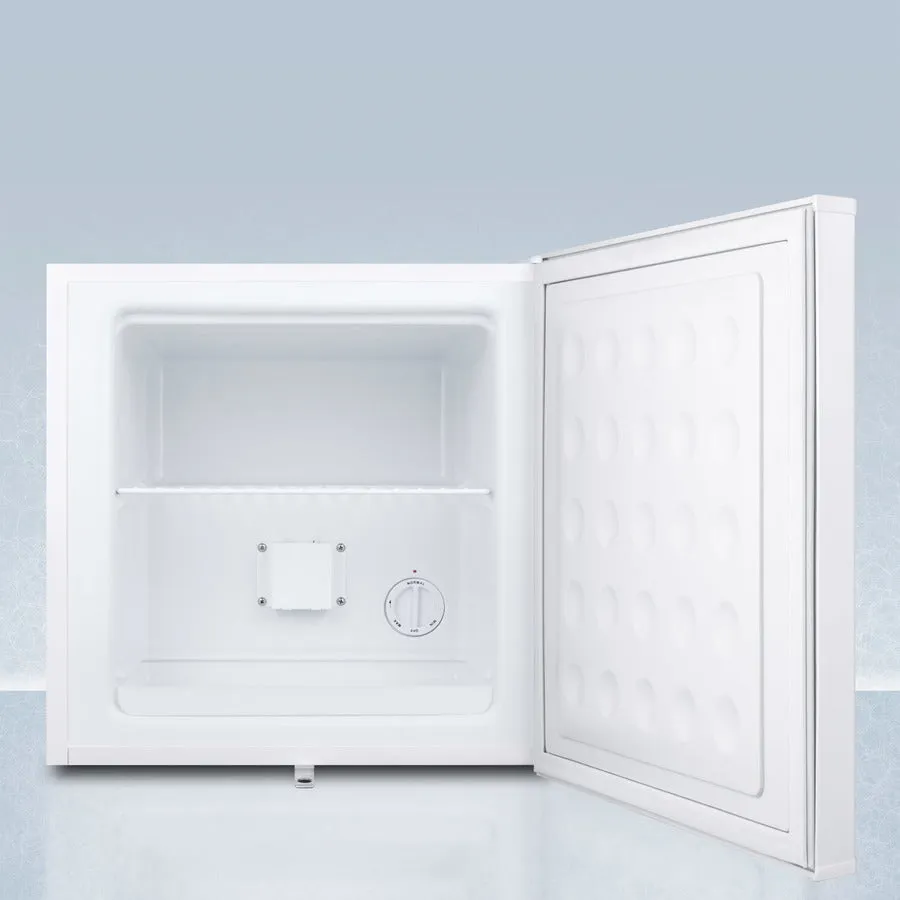

Accucold by Summit Appliance offers MED series all-freezers for stabilized temperature performance to be used in medical, scientific, pharmaceutical, and laboratory institutions.The FS24LMED is a compact all-freezer designed to reach -20� C, the ideal temperature for long-term storage of select sensitive materials. The 1.4 cu.ft. manual defrost interior offers static cooling for stable results. A removable wire shelf allows easy storage options, with a seamless interior liner to simplify cleanup. The dial thermostat is located inside. This unit has a flat door liner as recommended by the CDC.For added temperature assurance, the FS24LMED includes a high/low temperature alarm that also includes a NIST calibrated temperature display to the nearest tenth of a degree. A hospital grade cord includes a 'green dot' plug for added safety in high traffic settings. This model comes in a white finish and includes a factory installed lock and a preinstalled probe hole for users connecting their own monitoring equipment.In addition to the included features, the FS24LMED can be ordered with more advanced medical features, including a digital thermostat, power-out alarm, self-closing door, temperature logger, and more.
